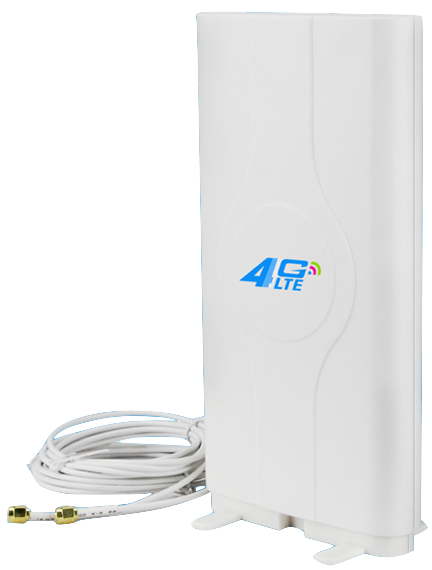

4g High Gain MIMO Antenna for Indoor Use

4g High Gain MIMO Antenna for Indoor Use

Quick Overview

1710 - 2690MHz Dual Polarized Directional Flat Patch Panel MIMO Antenna ANT-D1727VH-9-65 Perfect addition to PC31 4G Router Frequency Range (MHz) 1710 ~ 2690 Polarization Vertical & Horizontal Gain (dBi) 2x9...

$39.00

Qty

Add to Wishlist

Share 0 Tweet 0 Pin it 0 Fancy +1

Description
Customer Review

1710 - 2690MHz Dual Polarized Directional Flat Patch Panel MIMO Antenna

ANT-D1727VH-9-65

Perfect addition to PC31 4G Router

Frequency Range (MHz)	1710 ~ 2690
Polarization	Vertical & Horizontal
Gain (dBi)	2x9
Half-Power Beam Width	H:65 V:65
Front to Back Ratio	>25
Input Impedence	50
Isolation between ports	<1.5
Max Input Power (W)	200
Lightening protection	DC Ground
Input Connector Type	2xSMA Male
Dimensions (H/W/D) in mm	22012225
Weight (Kg)	0.35
Radome Material	ABS
Radome Color	White
Operating Temprature	-40 ~ 60
