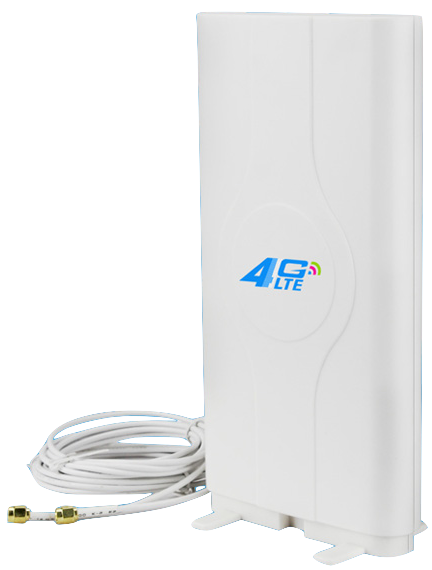

1710 - 2690MHz Dual Polarized Directional Flat Patch Panel MIMO Antenna for 4G Routers

Perfect addition to PC31 4G Router. You can also use a single port with PC14 or PP14 Routers

Product Description

If you're looking to get the absolute best data rates for your LTE or 5G hotspot, using Dual-polarized MIMO external antennas is often the best option.

Our MIMO Panel External Antenna Kit for 4G LTE/5G Hotspots & Routers includes everything you need to mount your external antennas, as well as the adapters necessary to connect the MIMO antenna to your hotspot or LTE router.

Our MIMO Panel antenna offers up to 9 dBi gain between 1710 and 2700 MHz

MIMO Panel vs MIMO Log Periodic

We also sell a MIMO Log Periodic Antenna for Hotspots/Routers that is very similar to this kit but with slightly higher gain and directivity. We recommend using the MIMO Log Periodic Antennas if you have line-of-sight to your nearest cell towers. If you're surrounded by trees, buildings, or hills, this MIMO Panel Antenna Kit will likely perform somewhat better than the Log Periodic Antenna Kit.

Choosing between 2x2 MIMO and 4x4 MIMO

Installing external MIMO antennas is all about maximizing your data speeds. Different routers and hotspots have different configurations for external antenna ports.

Most hotspots, like the Pronto Networks will have two antenna ports, while some of the more advanced routers like the Pronto Networks PC51 and PC41 often have four ports.

Our MIMO External Antenna Kits are available in both 2x2 MIMO and 4x4 MIMO configurations, with 2 and 4 antenna elements respectively.

Which one you should pick depends entirely on the device you have. If you've got two antenna ports, then you need the 2x2 MIMO Antenna Kit, while if you're working with four external antenna ports, it's usually best to go with 2 of these units.

Frequency bands support

Our wideband log-periodic antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:

US 4G LTE Bands:

• AT&T: B2, B4, B5, B12, B17, B29, B30, B66
• Verizon: B2, B4, B5, B13, B66
• T-Mobile: B2, B4, B5, B12, B66, B71
• Sprint: B25 B26, B41

All supported US Frequency Bands:

• Band 2 (1900 MHz)
• Band 4 (1700/2100 MHz)
• Band 5 (850 MHz)
• Band 12 (700 MHz)
• Band 13 (700 MHz)
• Band 14 (700 MHz)
• Band 17 (700 MHz)
• Band 25 (1900 MHz)
• Band 26 (850 MHz)
• Band 30 (2100 MHz)
• Band 66 (2100 MHz)
• Band 71 (600 MHz)

All supported LTE Bands: Band 1-10, Band 12-20, Band 23, Band 25-30, Band 33-41, Band 65-71, B85

Supported 5G Bands in use today:

• AT&T: n5
• T-Mobile: n71
• Sprint: n41

All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n14, n18, n20, n25, n26, n28, n29, n30 n34, n38, n39, n40, n41, n65, n66, n70, n71, n80, n81, n82, n83, n84, n86, n89, n90, n95
